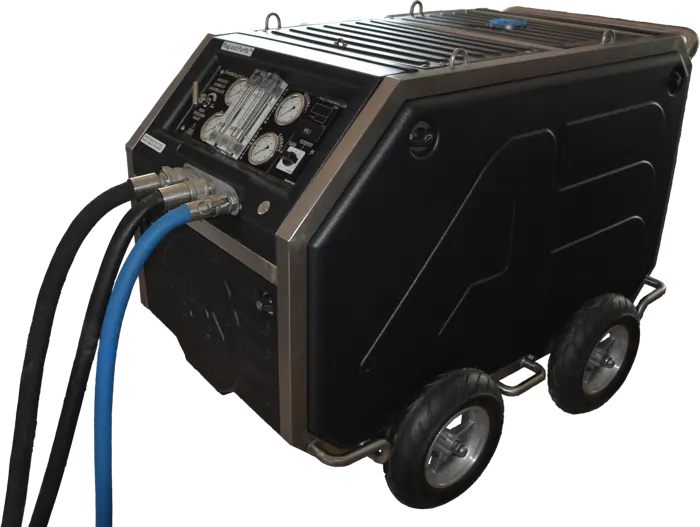

HydroVolt SQN (Sine Qua Non), Latin for "The Essential Element", delivers a compact, full featured, self contained, versitile, and yet mobile water and power maker. Made of the most durable marine grade components, SQN produces 2,500 gallons of water per day of RO drinking water from sea, river, lake, pond, pool, flood or tap water.
No priming needed.
Draws source water at constant flow from 91 meters (300 feet).
CAPACITY (@ 220V, 25C/77F)
WATER PRODUCTION CAPACITY
-RO Seawater: 9,500 LPD (2,250 GPD)
-RO Freshwater: 19,000 LPD (5,000 GPD)
Water Filtration Capacity
-50,000 liters per day (14,500 GPD)
WATER PURIFICATION STAGES
stage 1 & 2: particle pre filter
(ss, on intake pump)
stage 3: reversible rinse and flush
filter (80 micron)
stage 4: sediment filter (5 micron)
stage 5: carbon filter
stage 6: ultraviolet lamp
(ss frame)
stage 7: reverse osmosis
desalination membranes (2)
WATER CONTROL PANEL
-Three pressure gauges
-TDS display and water control regulator
-High pressure pump regulator
-Filtration water flowmeter
-Reverse osmosis water flowmeter
POWER CONTROL PANEL
- Emergency Master Shut Off
- Generator Electric Start
- Two Voltmeters
- Two mode switches
- Two hour counters
- Circuit Breakers
- AC Inlet
- Two External Power Outlets
POWER GENERATOR FEATURES
- YANMAR L100 diesel generator, 6.5 kW
- Easy access to fuel tank from top, fuel level gauge
- 2 outlets for powering external equipment (one 110V or 220V and 12V)
- Electric key ignition start and recoil start, electric shut down
- LOW OIL engine protection
- YANMAR oil capacity: 1.16 US qt. (1L)
- Fuel Tank Capacity: 2.9 G (11L)
- Low fuel indicator light
- Battery Type: 12V gel cell
- Battery Capacity: 17Ah(20Hr)
SAFETY PROTECTION FEATURES
- Emergency master shut off
- Security key access
- Circuit breakers
- Engine low oil protection
- UV hour count down
- Low/high pressure protection
- Battery shut-off switch with key
- Water quality monitoring and alarm
- Ultra violet light sterilization
- CIP/Flush system, adjustable timer
BODY
- 4 balanced hoist hooks for helicopter or crane lifting
- 4 wheels for rolling unit
- stainless steel frame, powder coated, ABS panels
HOSES
-Intake: (2 x 1" camlock), 10m (32 ft)
-Discharge: (2 x 1" camlock), 10m (32 ft)
-Pure Water: (2 x camlock), 5m (16 ft)
-Extended Range: (2 x 1" camlock), 10m (32 ft)
-Connectors: Camlock on both ends of each hose, Military Standard Camlocks MIL-C-27487 (A-A-59326)
-Heavy Duty Hoses (20 bar, 290 psi)
-Flush hose: quick connect with screen filter
POWER SUPPLY
- external or internal power production
- externel power requirements; 3.68 kW,
32A (115V/60Hz), 16A (230V/50Hz)
- 6.5kW, Yanmar L100-McAlte Generator
- Diesel
SQN SPECIFICATIONS
Dimensions (L x W x H)
-cm: 132 x 94 x 94 , inches: 52 x 37 x 37
Weight
- 273 kg, 602 lbs (dry)
- 281 kg, 620 lbs (wet)
Noise
- 90 dB(A) @ 23 feet
DX CASE SPECIFICATIONS
Dimentions (L x W x H)
-cm: 89 x 18 x 38
-inches: 35 x 7 x 15
Weight
-'Wet': 23 kg, 51 lbs
-'Dry': 12 kg, 26 lbs
Body
- ABS plastic, aluminum fixtures, stainless steel vent grilles (2)
INTAKE PUMP SAFETY FEATURES
- Auto shut off & restart
- Voltage load protection
- Freeze protection
INTAKE PUMP SPECIFICATIONS
- Max head: 61m, 200'
- Max run: 91m, 300'
- Pump body material: stainless steel
- Dim OD x L: 13 x 89 cm
5” x 35”
- Weight (with cable): 12 kg, 26 lbs
- Cable length: 10m, 32'
4 MODES OF OPERATION
1. Power Generator Only Mode: The generator is capable of simultaneously powering the unit and offers usable external electricity. It can also be used as stand alone power generator.
2. RO Water Maker/Purification Mode: Sea, brackish or nuclear/biologically/chemically contaminated water is processed using 7 stages which includes a reverse osmosis stage.
3. Filter Only Mode: For less contaminated water sources, the reverse osmosis stage can be bypassed from the control panel increasing the output to 19,000L (5,000G) and extends the life of the RO membrane.
4. Pump Only Mode: The powerful delivery pump can transfer over 50,000L (14,500 G) of water a day. This mode can be used to clear out flooded areas, provide showers, and rinse off equipment.
KEY SQN FEATURES
- Rapidly deployed, rugged and easily transportable
- User-friendly controls and ergonomics make it safe for shelters, communities and water distribution centers
- Capable of effectively removing potentially hazardous concentrations of chemical and biological agents and radioactive nuclear by-products
- Operates on external power sources or its internal YANMAR L100 generator (110V or 220V versions available)
- Weather-resistant enclosed frame allows for operation in any environment (stainless steel frame, marine grade components)
- Optimum purification and flow design
- Includes full safety protection protocols for water quality, electronics, and equipment
- Easy access to filters and parts (panels can be open and removed)
- 4 balanced hoist hooks for helicopter or crane lifting
- 4 wheels for rolling unit
- Flush Pump: 3.8LPM (1GPM), silent, can run dry
Each unit comes with the following installed:
- mesh screen sleeve
- large particle sleeve
- sediment and carbon filters
- UV Lamp
- membrane
- Camlock cover caps (3 in total)
2 DX Hard Cover Deployment Cases:
Each system comes with two DX deployment cases ( ABS and aluminum).
'DRY' DX Case includes:
- water testing kit
- AC power cord to unit (10m)
- extended range extension cable (10m)
- QC Camlock to garden hose adapter
- filter wrench
- unit cover
- plug adapter (GS-18 and SS-417 type)
- user manual
- quick reference user guide
- source water evaluation sheet
- intake pump floater with stainless steel chains
'WET' DX Case includes:
- stainless steel high flow double screen intake pump with cable (10m)
- intake hose (10m)
- discharge hose (10m)
- pure water hose (5m)
- extended range extension hose (10m)
- system flush/CIP hose with screen
INTAKE PUMP FEATURES
- vertical/horizontal operating position submersible stainless steel pump with handle and stainless steel/polyamide body
- motor: stainless steel (DIN W.-Nr. 1.4301) (ANSI 304)
- Intake pump diameter: 16cm (6.3") with handle, 13cm (5") without handle
- can feed water to AQN/SQN/AQS system at a range of over 90 meters (300 feet)
- pumps water out of flooded spaces at 10 gallons (38 liters) per minute with 220V model and up to 14 gallons per minute with 110V model
- 1" Camlock installed fo easy and quick connection to intake hose
- pumps down to 3 inches from flooded rooms or vehicles
