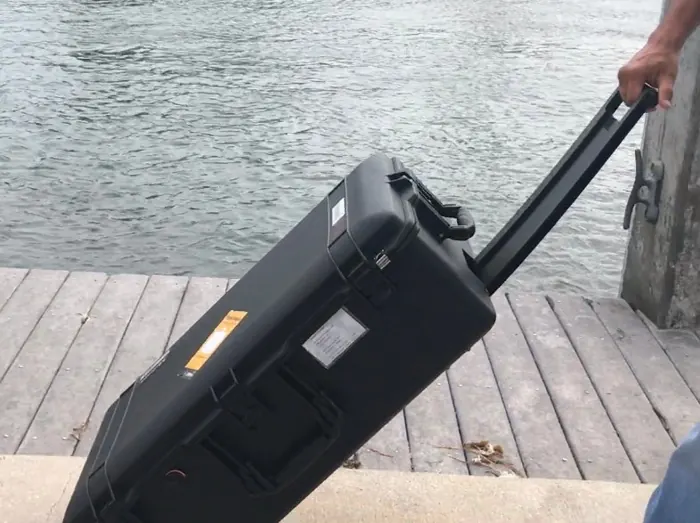

 Easily Transportable |
Universal PowerBank & WaterMaker

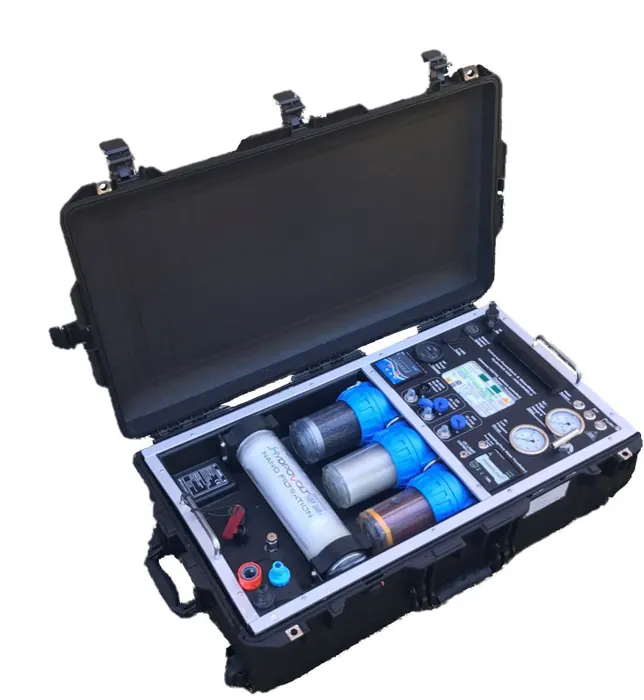

HydroVolt AQS - AQUASHIELD
All in one: Portable (airline checked baggage) Mil-Spec Emergency Water and Power System -
- purifies any water source: Operates as a Filtration System OR Reverse Osmosis Desalination Unit with the push of a single
button
- - up to 300 GPD (1,100 LPD) from sea water
- - up to 1,500 GPD (5,678 LPD) from fresh water
- Internal Power Bank and Charger
- Universal External Power (90-260 V 40-80 Hz)
Trully Universal: no matter what water or power source
CAPACITY (@ 220V, 25C, 77F)
- DESALINAION: 300 GPD / 1100 LPD
- FRESH WATER RO: 400GPD / 1500 LPD
- NANO FILTRATION: 1,5 GPM / 5,7 LPM
WATER PURIFICATION STAGES
stage 1 & 2: 2 step mesh filtration
stage 3: 30 micron disc filter
stage 4: sediment filter (5 micron)
stage 5: carbon filter
stage 6: ultraviolet LED Lamp
stage 7: reverse osmosis
desalination membrane
(300 GPD / 1100 LPD)
OR
stage 7: Nephros ultrafiltration (Military Standard P-248)
BODY
- heavy duty, waterproof, dust proof Pelican
case with wheels and handles

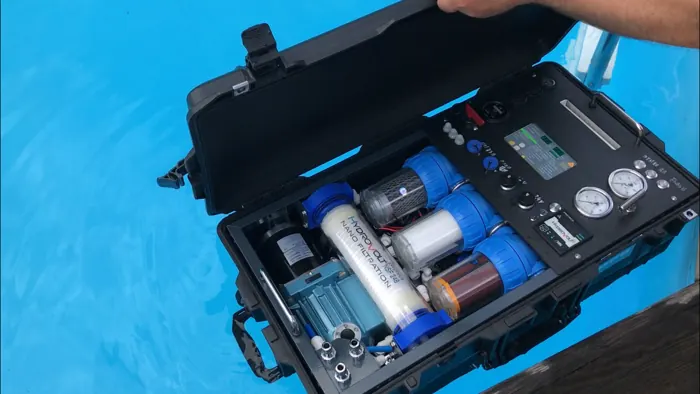

- waterproof & buoyant for use in disaters and water crises
- internal handles: unit is easily removable
from case to service
- Carbon Fiber Membrane Housing
- Aluminum Unit Frame Structure
HOSES
-Intake: 5m (16 ft.)
-Discharge: 5m (16 ft.)
-Pure Water: 3m (9,8 ft.)
POWER SUPPLY
-external or internal
-universal 90-260V, 40-80 Hz AC Input
-12V, 40Ah high performance LiFePO4
batterie with internal charger.
CHARGING OPTIONS
- 2 USB (2.1Amp) Output ports
- 90-260V, 40-80 Hz AC Input plug
- 12V (25Amp) Input/Output plug
- 24V (20Amp) Output plug
AQS SPECIFICATIONS
Dimensions (L x W x H)
inches: 32.58" x 18.40" x 11.02
cm: 82.8 x 46.7 x 28
Weight
- 88 lbs, 40 kg (dry weight)
DX DEPLOYMENT CASE SPECIFICATIONS
Dimensions (L x W x H)
inches: 32.58" x 18.40" x 11.02
cm: 82.8 x 46.7 x 28
3 MODES OF OPERATION
1. RO Water Maker/Purification Mode: Sea, brackish or nuclear/biologically/chemically contaminated water is processed using 7 stages which includes a reverse osmosis stage.
2. Filter Only Mode: For less contaminated water sources, the reverse osmosis stage can be bypassed from the control panel increasing the output to 8,208 liters (2,160 gallons) a day and extends the life of the RO membrane. (Military Standard P-248)
3. Power Bank: Removable Power Bank uses high performance 12V, 40 Ah LiFePO4 batteries with a balancer. The Power Bank can be removed from the unit and used as a seperate 12v power source capable of charging computers and cell phones dozens of times on 1 charge. Replacement Power Banks are available for backup.
WaterMaker FEATURES
- INTERFACE: intuitive, easy operation
- TDS / Temperature CONTROLLER: allows user to monitor water quality
- PRESSURE GAUGES: 1) Filtration 2) RO
- FLUSH: (1) NANO FILTRATION automatically flushes on every start and every hour,
(2) manual flush as needed
- RO PUMP CONTROLLER: smooth high pressure pump operation
- ELECTRO VALVE: equipped with manual override if there is loss of power
- SUCTION PUMP: suction pump draws water from up to 8 meters (26 feet)
- UV LED LAMP CONTROLLER: light indicates proper UV function
- 7 STAGE FILTRATION
- LEAK ALARM: signals if there is water collecting inside the case
- Carbon Fiber Membrane Housing
- Easy Access Garden Hose Adapters for IN/PURE/DISCHARGE
water hoses
Power Bank FEATURES
- 12V, 40Ah high performance LiFePO4 batteries
- stand alone Power Bank with handle:
• swap / slide in/out of the AQS unit
• can be used as a Power Bank internally or externally
• can be charged internally or externally
- main battery/PowerBank OFF switch for safe traveling
- fully charged battery lasts 4 – 5 hours of system nano filtration
- high performance LiFePO4 batteries
• long cycle life: up to 2000 cycle life (8x of Lead Acid and 3-4x of Li-ion)
• extremely safe/stable chemistry: no explosion & will not catch fire during impacts, over charge or
short circuit; high thermal stability of phases up to 932F (500C)
• long service life: 5~6 years
• wide working temperature range: -4 F to +150 F (-20C to +70C)
• high rate (power) capability
• environmentally friendly non-toxic and no rare metal content
• fast charging: fully charges before secondary battery is dicharged during use
BATTERY CHARGER FEATURES
- marine grade, global, universal power charger
- 25 Amps MAX (can charge truck and military vehicle batteries)
- 90-260V, 40-80 Hz AC Input

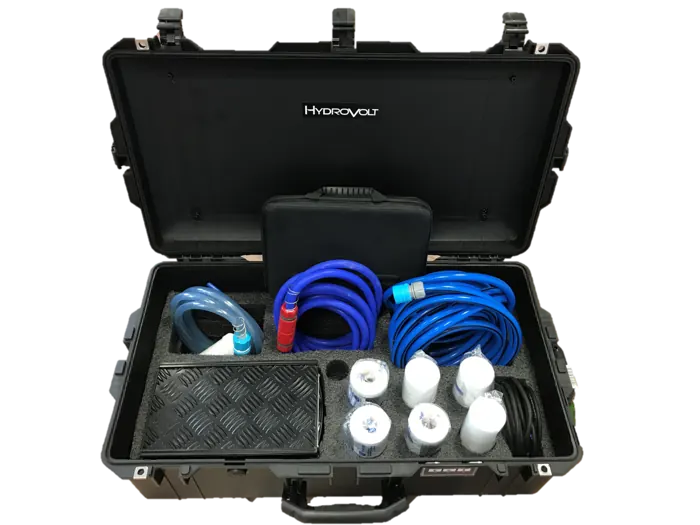

AQS DX Hard Cover Deployment Case
Heavy duty, waterproof, dust proof Pelican case with wheels and handles - same as the AQS Case.
