AQN



Disasters that result in blackouts and water emergencies can paralyze any area in the world. Unpredictability limits response times and effectiveness of relief efforts. The AQN is a solution for overcoming countless scenarios where difficult terrain, large impact areas, limited accessibility to personnel and compromised water sources affect delivery of drinking water and electrical power.

The HydroVolt AQN can be deployed in minutes and has the versatility and portability to purify any water source: seawater, rivers, lakes, tap water, swimming pools, ponds and flood water. It can pump water out of flooded indoor areas even while providing standard generator applications.

No priming needed.

Draws source water at constant flow from 91 meters (300 feet).



CAPACITY (@ 220V, 25C/77F)

WATER PRODUCTION CAPACITY

-RO Seawater: 4,500 LPD (1,200 GPD)

-ROFreshwater: 15,000 LPD (4,000 GPD)

Water Filtration Capacity

-Freshwater: 15,000 LPD (4,000 GPD)

Water Pump Capacity

-50,000 liters per day (14,500 GPD)





WATER PURIFICATION STAGES

stage  1 & 2: particle pre filter
                (ss, on intake pump)

stage  3: reversible rinse and flush
                filter (80 micron)

stage  4: sediment filter (5 micron)

stage  5: carbon filter

stage  6: ultraviolet lamp
               (ss frame)

stage  7: reverse osmosis
               desalination membranes (2)

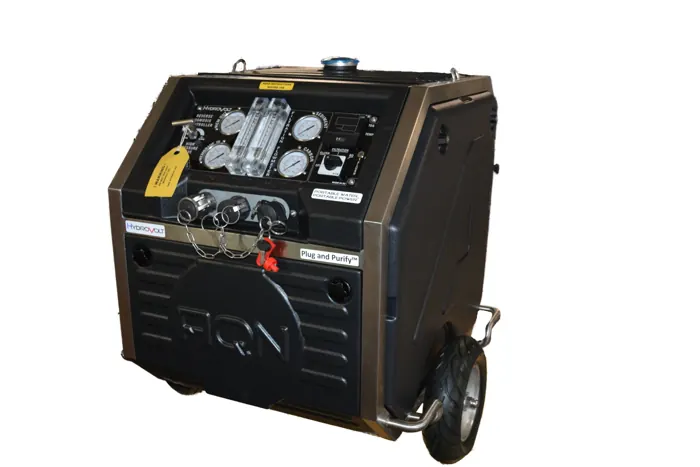

WATER CONTROL PANEL

-Three pressure gauges

-TDS display with water quality regulation

-High pressure pump regulator

-Filtration flowmeter

-Reverse osmosis flowmeter





POWER  CONTROL PANEL

- Emergency Master Shut Off

- Generator Electric Start

- Two Voltmeters

- Two mode switches

- Two hour counters

- Circuit Breakers

- AC Inlet

- Two External Power Outlets

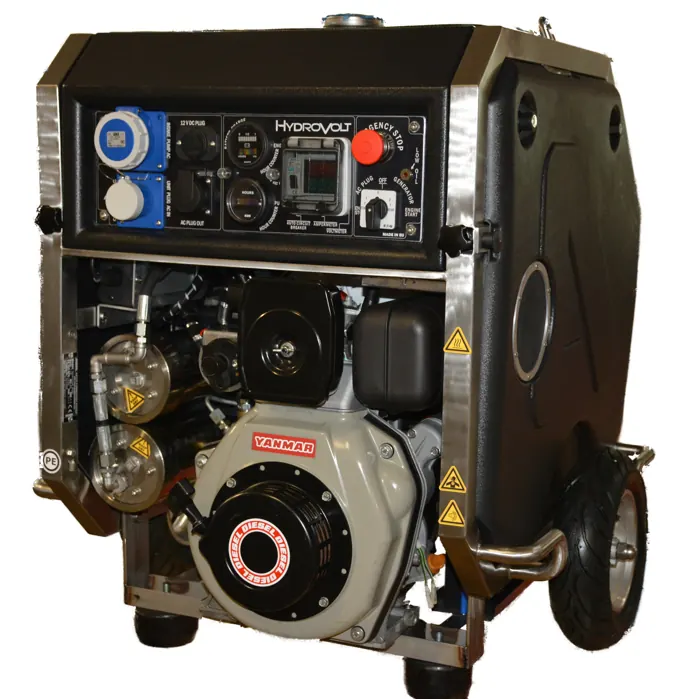

POWER GENERATOR FEATURES

- YANMAR L70 diesel generator, 4.5 kW

- AVR (Automatic Voltage Regulator), no power jump variations

- Easy access to fuel tank from top, fuel level gauge

- 2 outlets for powering external equipment (one 110V or 220V and one 12V)

- Electric key ignition start and recoil start, electric shut down

- LOW OIL engine protection

- YANMAR oil capacity: 1.16 US qt. (1L)

- Fuel Tank Capacity: 2.9 G (11L)

- Battery Type: 12V gel cell

- Battery Capacity: 17Ah(20Hr)





SAFETY PROTECTION FEATURES

- Emergency master shut off

- Security key access

- Circuit breakers

- Engine low oil protection

- Voltage regulator (AVR)

- UV hours of operation counter

- Low/high pressure protection

- Battery shut-off switch with key

- Water quality monitoring and alarm

- Ultraviolet light sterilization

- CIP/Flush system, adjustable timer





BODY

- 2 balanced hoist hooks for helicopter or crane lifting

- 2 retractable wheelbarrow style handles for rolling unit

- stainless steel frame, ABS panels

- 2 pneumatic aluminum wheels

- wheel size: 110/50-6.5



HOSES

-Intake: (2 x 1" camlock), 10m (32 ft.)

-Discharge: (2 x 1" camlock), 10m (32 ft.)

-Pure Water: (2 x camlock), 5m (16 ft.)

-Extended Range: (2 x 1" camlock), 10m (32 ft.)

-Connectors: Camlock on both ends of each hose, Military Standard Camlocks MIL-C-27487 (A-A-59326)

-Heavy Duty Hoses (20 bar/ 290 psi)

-Flush hose: quick connect with screen filter





POWER SUPPLY

- external or internal power production

- 4.5kW, Yanmar L70-McAlte Generator

- Diesel





AQN SPECIFICATIONS

Dimensions (L x W x H)

-cm: 78 x 80 x 84, inches: 30.7 x 31.5 x 33

-handles extended: 60.6 cm, 23 inches

Weight

- 206 kg, 455 lbs (dry)

Noise (RO Only)

- 82 dB(A) @ 23 feet





DX CASE SPECIFICATIONS

Dimentions (L x W x H)

-cm: 89 x 18 x 38

-inches: 35 x 7 x 15

Weight

-'Wet' Case: 23 kg/51 lbs.

-'Dry' Case: 12 kg/26 lbs.

Body

- ABS plastic, aluminum fixtures, stainless steel vent grilles (2)





INTAKE PUMP SAFETY FEATURES

- Auto shut off & restart

- Voltage load protection

- Freeze protection





INTAKE PUMP SPECIFICATIONS

- Max head: 61m, 200'

- Max run: 91m, 300'

- Pump body material: stainless steel

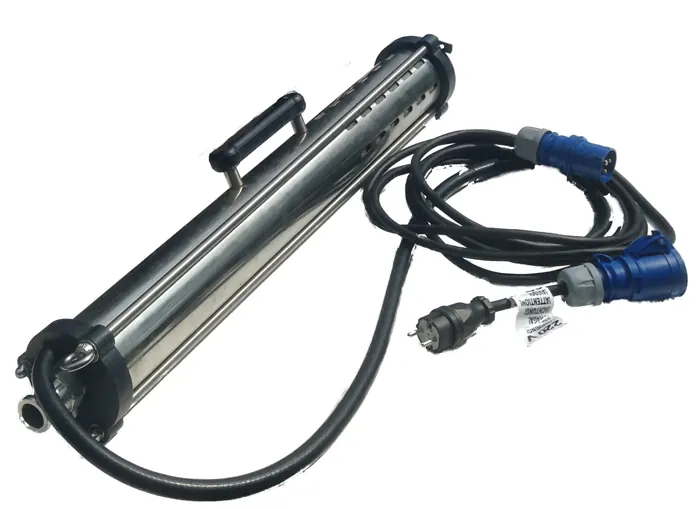

- Dimensions OD x L: 13 x 89cm
                               (5” x 35”)

- Weight (with cable): 12 kg/26 lbs.

- Cable length: 10m/ 32'



4 MODES OF OPERATION

1. Power Generator Only Mode: The generator is capable of simultaneously powering the unit and offers usable external electricity. It can also be used as stand alone power generator.

2. RO Water Maker/Purification Mode: Sea, brackish or nuclear/biologically/chemically contaminated water is processed using 7 stages which includes a reverse osmosis stage.

3. Filter Only Mode: For less contaminated water sources, the reverse osmosis stage can be bypassed from the control panel increasing the output to 15,000L (4,000G) and extending the life of the RO membranes.

4. Pump Only Mode: The powerful delivery pump can transfer over 50,000L (14,500 G) of water a day. This mode can be used to clear out flooded areas, provide showers, and rinse off equipment.





KEY AQN FEATURES

- Rapidly deployed, rugged and easily transportable
- User-friendly controls and ergonomics make it safe for shelters, communities and water distribution centers
- Capable of effectively removing potentially hazardous concentrations of chemical and biological agents and radioactive nuclear by-products
- Operates on external power sources or its internal YANMAR L70 generator (110V or 220V versions available)
- Weather-resistant enclosed frame allows for operation in any environment (stainless steel frame, marine grade components)
- Optimum purification and flow design
- Includes full safety protection protocols for water quality, electronics, and equipment
- Easy access to filters and parts (panels can be open and removed)
- 4 frame-welded handles for lifting onto vehicles

- Flush Pump: 3.8LPM (1GPM), silent, can run dry





Each unit comes with the following installed:

- mesh screen sleeve

- large particle sleeve

- sediment and carbon filters

- UV Lamp

- two membranes

- Camlock cover caps (3 in total)

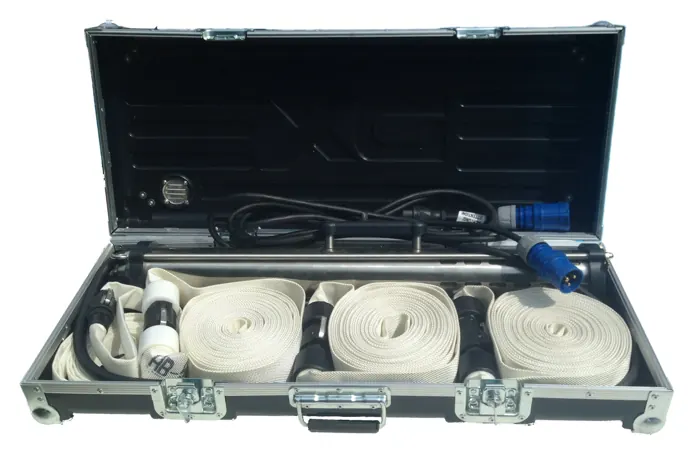

2 DX Hard Cover Deployment Cases:
Each system comes with two DX deployment cases ( ABS and aluminum).



'DRY' DX Case includes:

- water testing kit

- AC power to unit cord (10m)

- extended range extension cable (10m)

- QC Camlock to garden hose adapter

- filter wrench

- unit cover

- plug adapter (GS-18 and SS-417 type)

- user manual

- quick reference user guide

- source water evaluation sheet

- intake pump floater with stainless steel chains





'WET' DX Case includes:

- stainless steel high flow double screen intake pump with cable (10m)

- intake hose (10m)

- discharge hose (10m)

- pure water hose (5m)

- extended range extension hose (10m)

- system flush/CIP hose with screen
